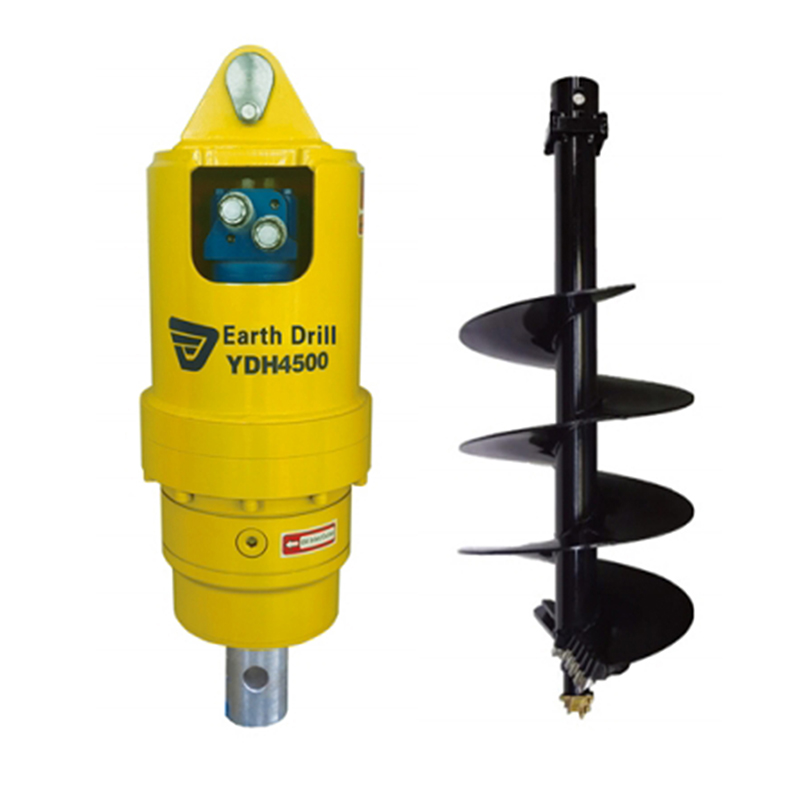

Feature of our KINGER earth auger

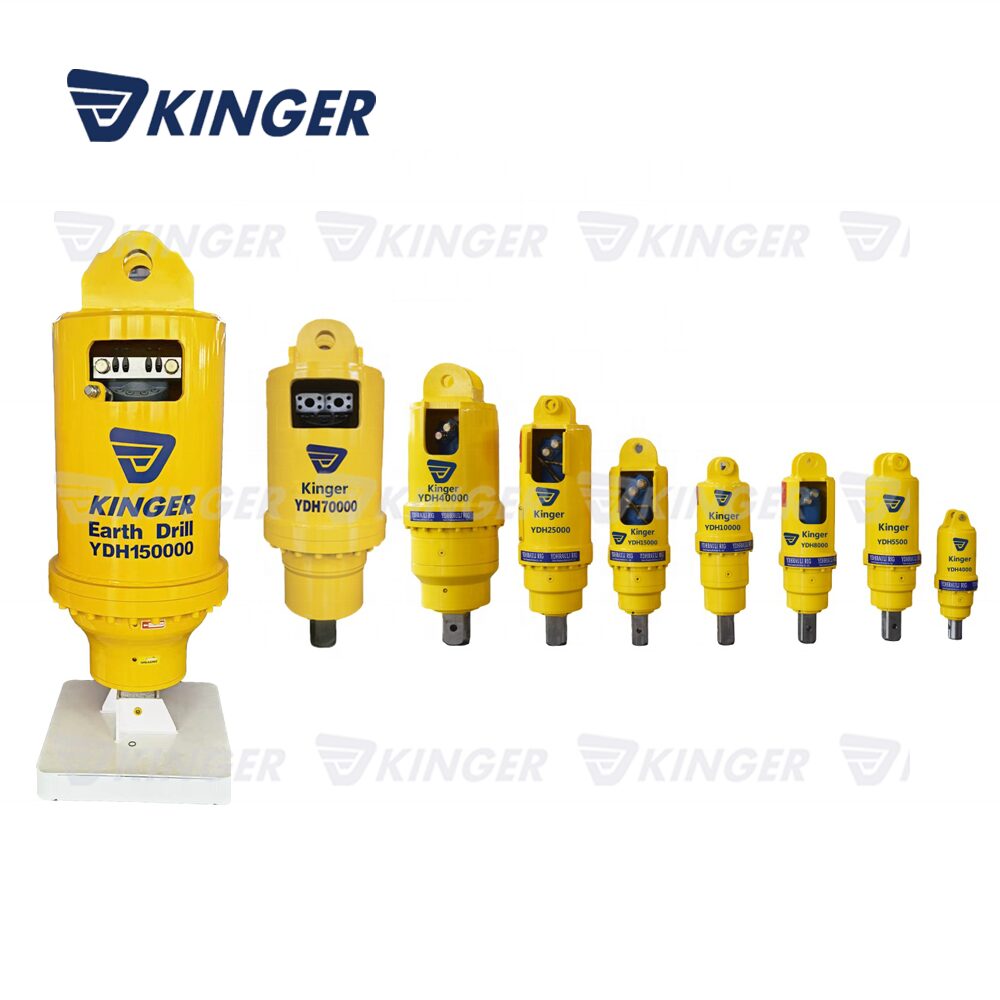

MODEL RANGE

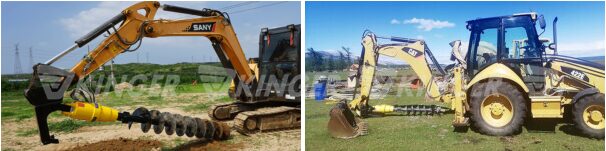

KINGER earth auger has 25 models ranges from YDH mini to YDH150000, which is suitable for 0.8-50ton excavator,skid steer and backhoe loader etc.

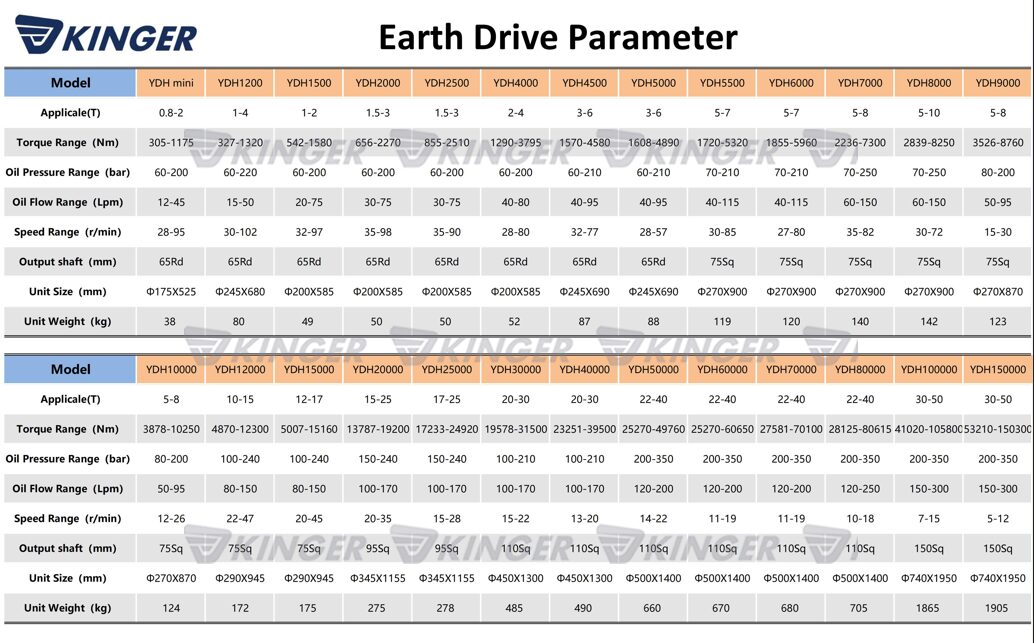

Specifications

Above specification is just for your reference.We can match suitable model according to your excavator weight.

WARRANTY AND SERVICE
One-year warranty for motor and 18-month warranty for gearbox.
We provide technical support and online service.
HIGH QUALITY HYDRAULIC MOTOR
KINGER well-performance means we pay more attention to develop the most reliable attachments for customers.
EPICYCLIC GEARBOX
Gear processing adopts special heat treatment processing technology,which is developed by Doctor of Tsinghua University.
NON-DISLODGEMENT SHAFT
Unique to KINGER earth auger, the Non-Dislodgement Shaft is a single-piece drive shaft assembled from the top down and locked in the earth drill layer.
This design guarantees that the shaft will never fall out.It can make a safer work environment for both the operator and also any surrounding workers, which is a necessary feature.

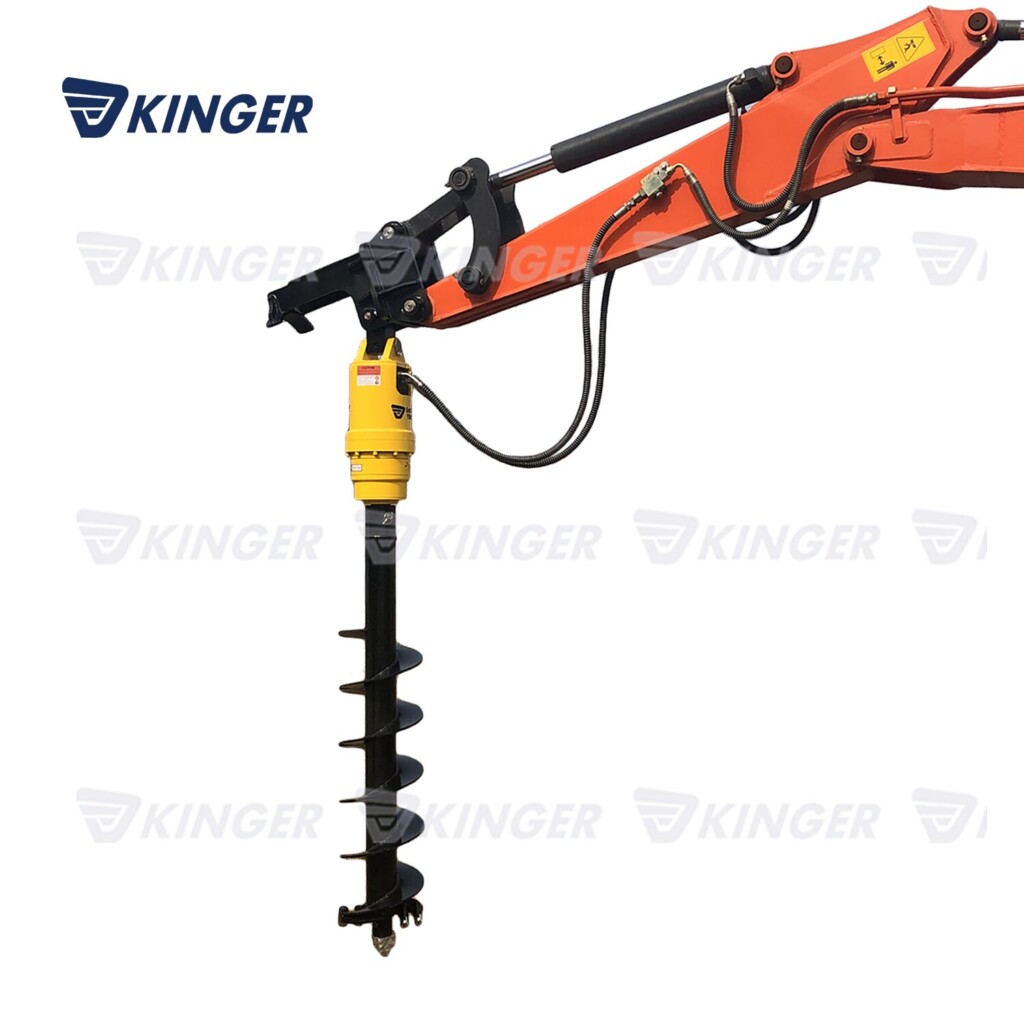

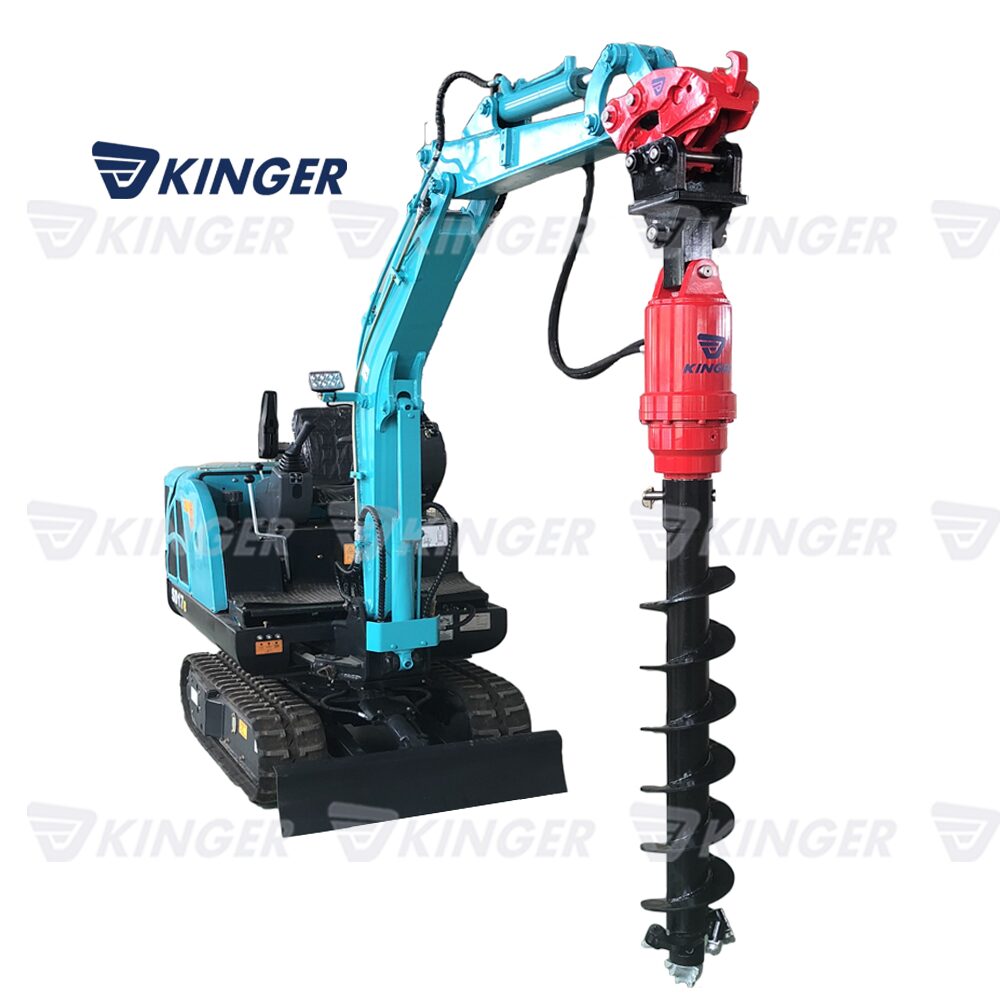

Product Description

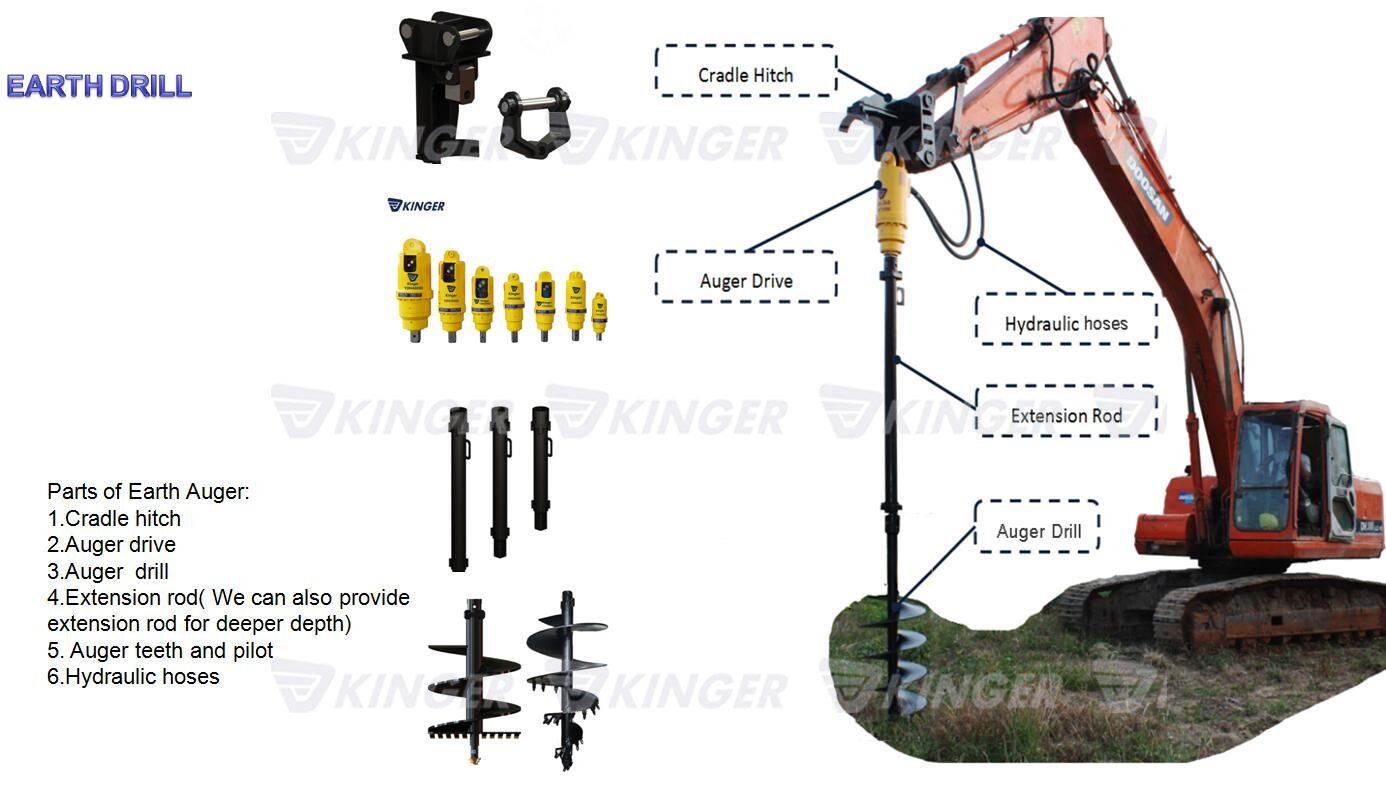

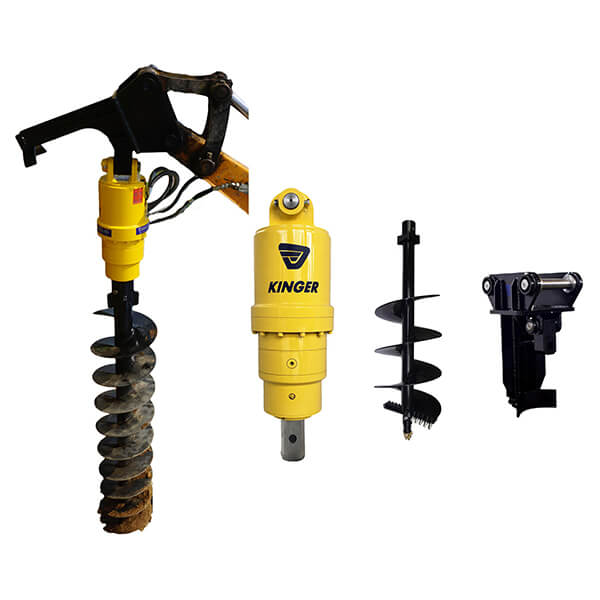

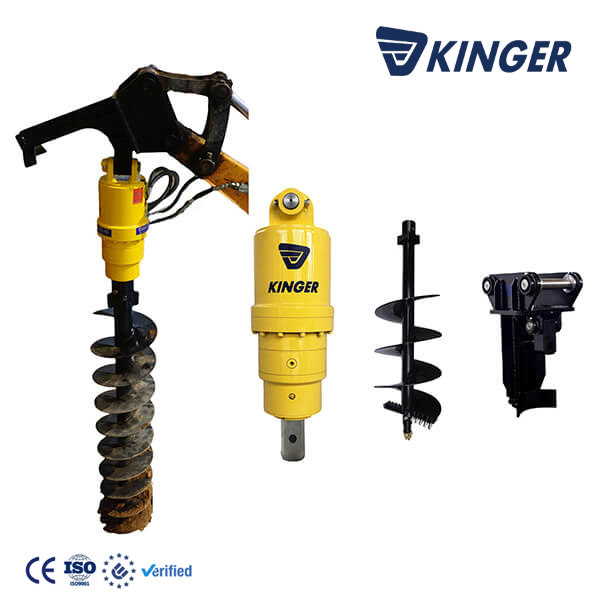

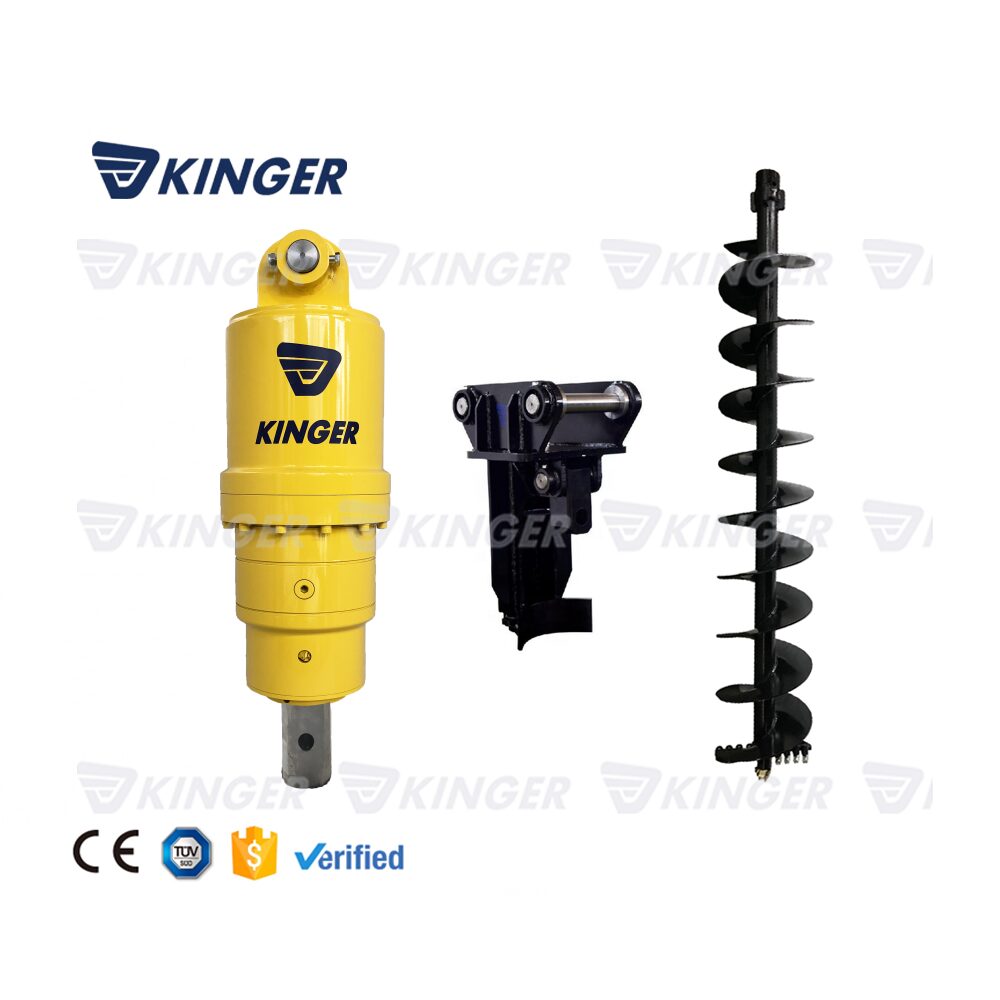

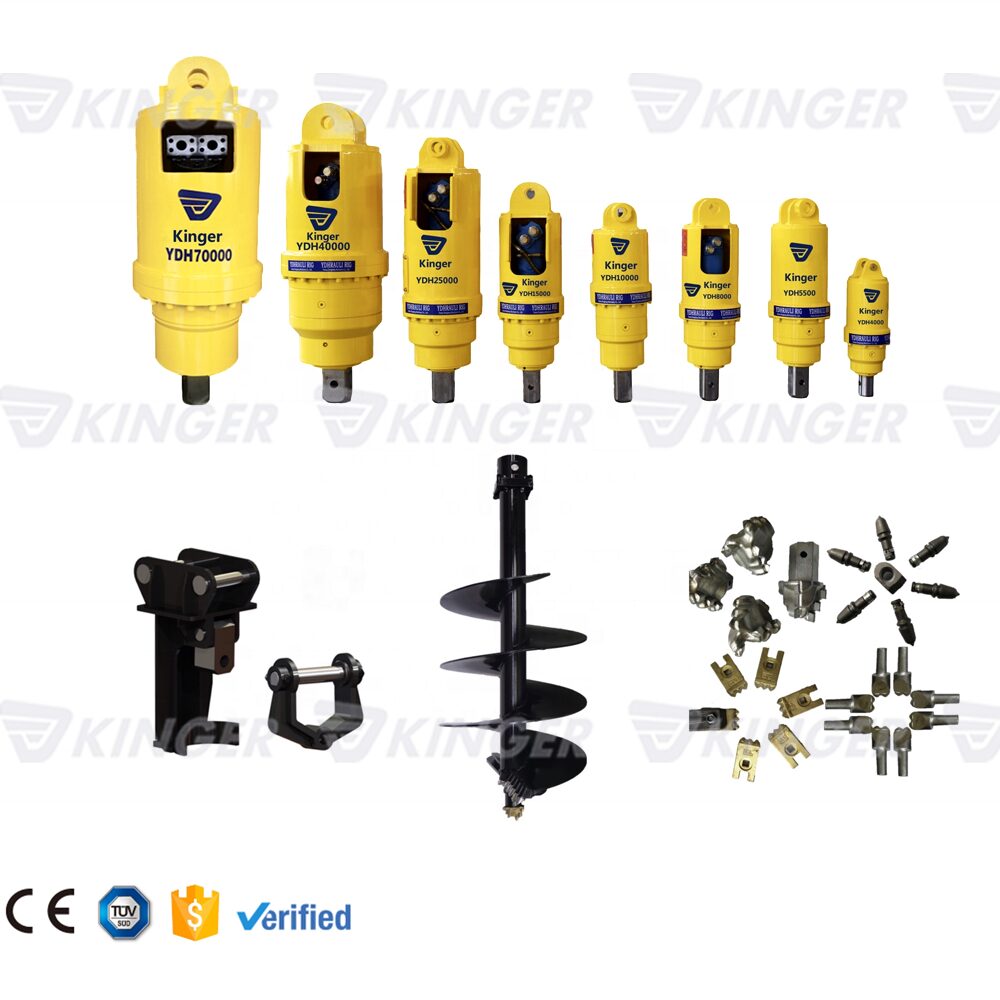

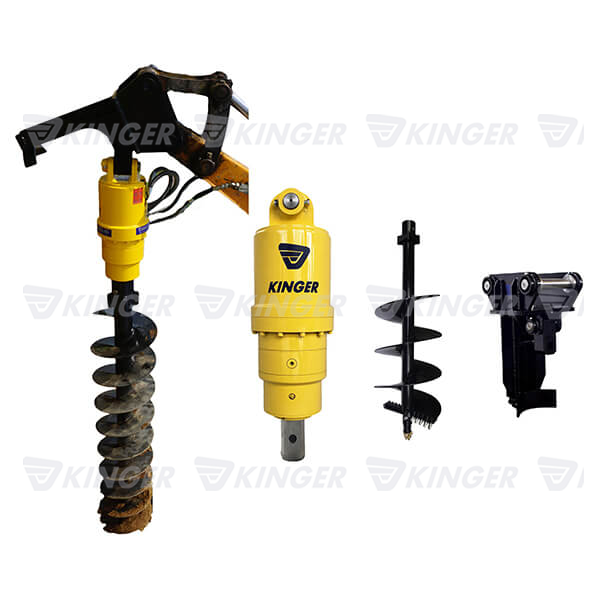

The whole set includes 6 parts as below shows:

We have single pin hitch, double pin hitch and cradle hitch for connecting KINGER auger drive with excavator/backhoe loader/skid steer etc.
We also manufacture auger drill and extension bar ourselves.There are 8mm, 10mm, 12mm and 16mm different thickness of auger flight to meet customer different working requirements.The standard length is 1.5m.But we also have 1m,1.2m,1.85m,2m and 2.5m length.The range of diameter is from 100mmto 2000mm.We can manufactured as your need.
As to extension bar,there are 1m, 1.5m, 2.5m, 3m different length customized available.
The diameter of extension bar is 89mm, 108mm, 127mm and 146mm.
When it comes to teeth option,we have cutting teeth, round teeth and flat teeth for different soil condition.Cutting teeth is used to rock,pitch or a lot of gravel land. Round teeth is used to clay, sandy land, frozen soil or a little gravel.Flat teeth is used to normal soil.

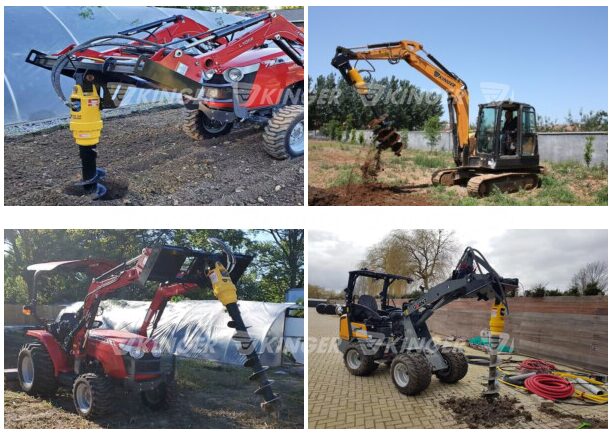

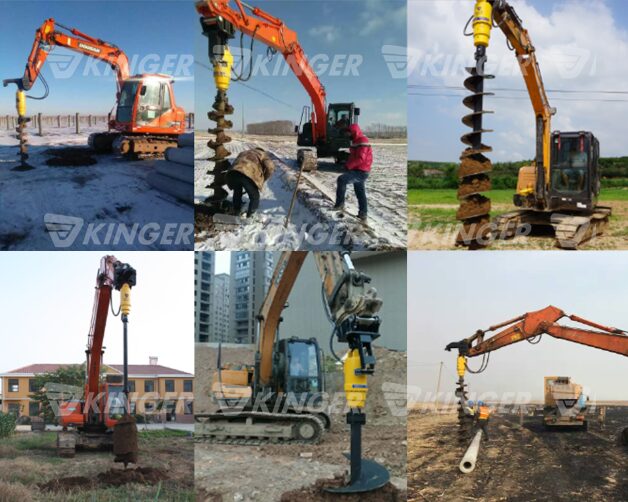

Application

KINGER earth auger widely apply to electric power, forestry, telecommunication municipal works, high-speed railway, Landscaping, Tree planting, Well boring, Foundation piles, Screw pile installations, Ground source heat pumps, Pole and Mast Installations, Solar energy piling, Bridge pier drilling etc.
KINGER earth auger is A\applicable to a variety of soil, such as frozen soil, pure soil, soft soil, clay, sand, wind fossils, as well as gravel, pebbles and so on.

Payment & Delivery

We accept payment by T/T, credit card,Western Union,MoneyGram,L/C etc.
If the order is under 20pcs,we can deliver the goods to Qingdao Port within 15 days after received the advance payment.If more than 30pcs, we deliver the goods within 30 days after received the advance payment.We can also deliver the goods to your required port.

Packaging & Shippment

We used the baking varnish and paint surface smooth without peeling. The exposed parts are treated with rust prevention. Export products are packed in plywooden cases to ensure no bump, rust and other phenomena during transportation.
Implement the global concept of environmental protection, reduce the use of plastic and other packaging materials that seriously damage the environment.

Our Advantages

We have manufactured excavator attachments for more than 16 years.All of our products get CE form and ISO certificate with high and stable quality.In addition,we accept OEM.

Our Service

KINGER has a rigorous R&D team, thoughtful pre-sales service, after-sales service. According to the requirements of customers, we can provide a complete set of solutions.
Any need you may have will get a prompt response from the KINGER.
